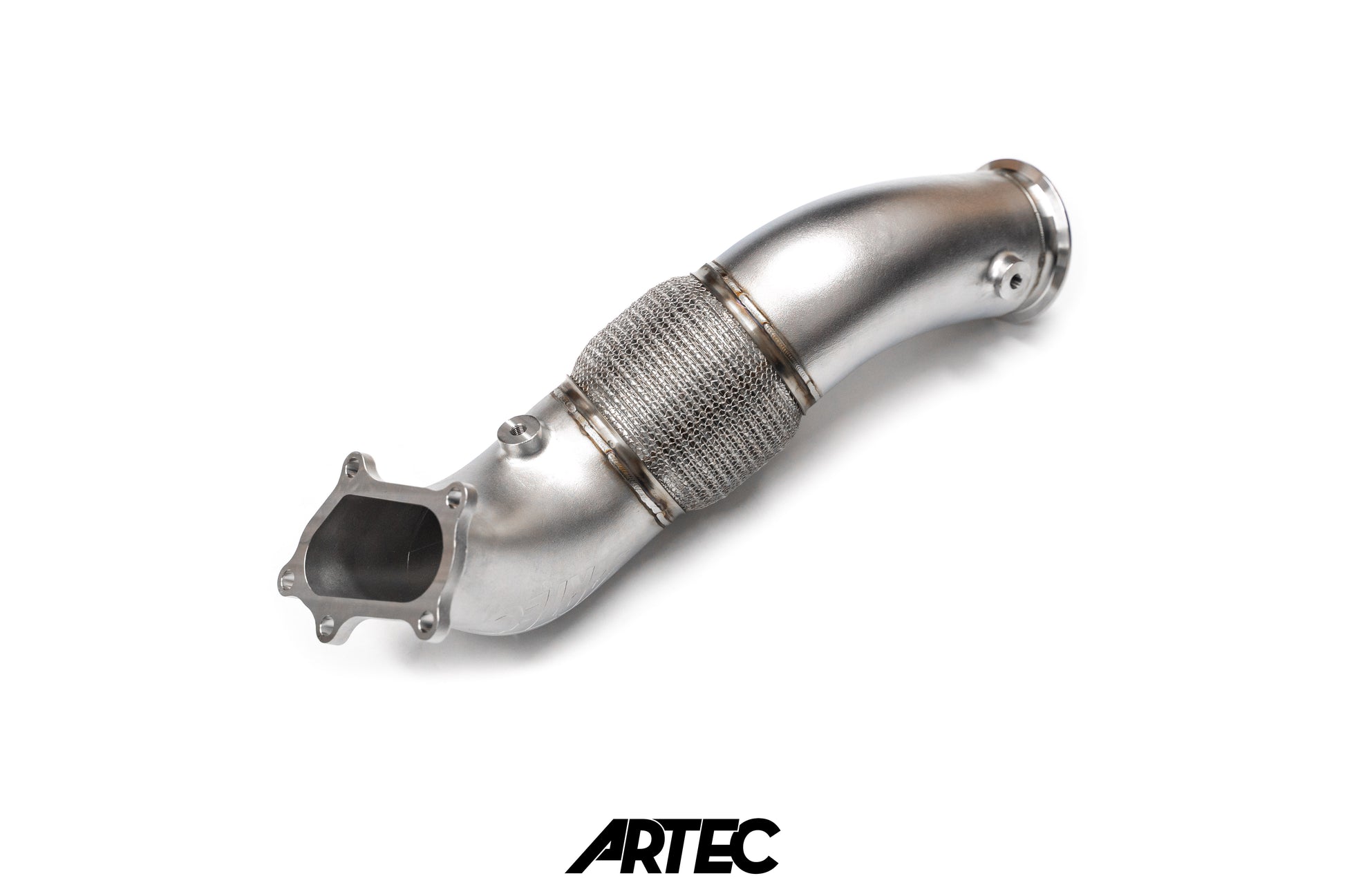

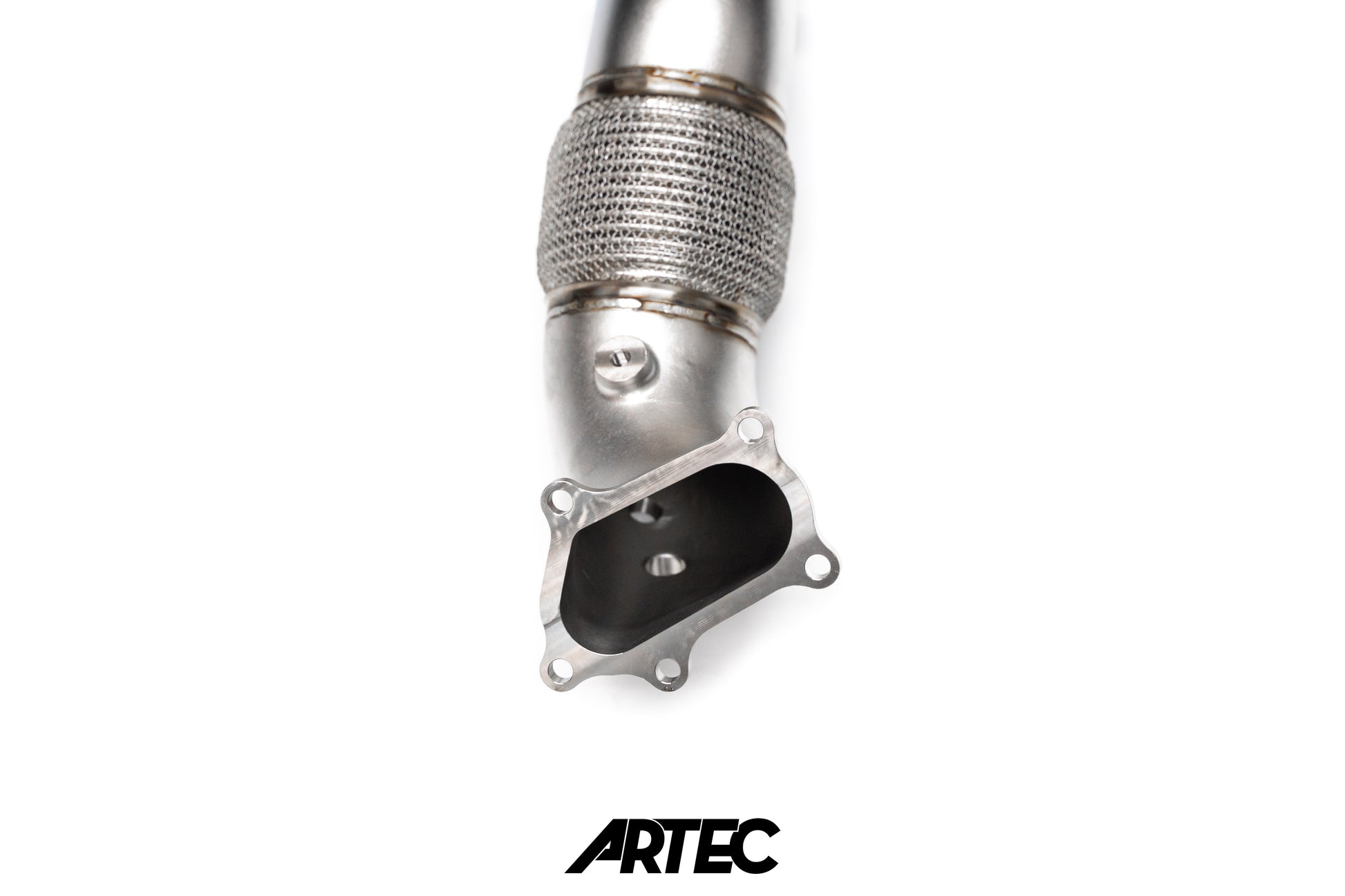

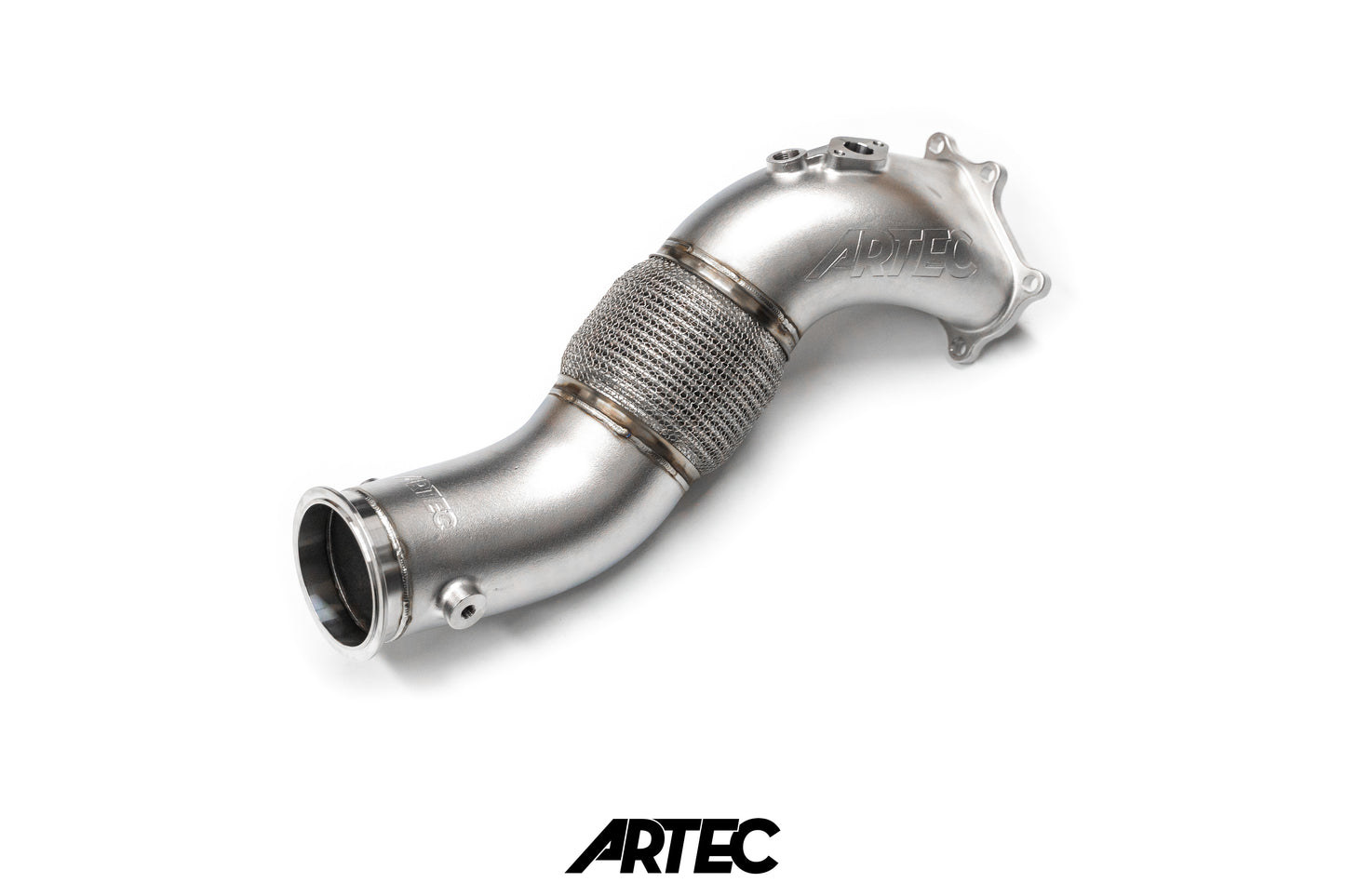

Toyota 1JZ-GTE VVTi 3.5" V-Band Downpipe

Designed to be the highest flowing stock-frame downpipe available for the 1JZ VVTi platform.

The 1JZ VVTI is a great sounding engine, but is held back with its factory exhaust system, restricting both power and the aural pleasure the short stroke 1JZ produces. The OEM downpipe is known to create significant post-turbine back pressure and our new downpipes were designed to open this up properly, reducing restriction and allowing the engine to deliver improved response, power and a more authentic JZ exhaust tone (Note: we always recommend a full 3.5” exhaust system on any performance-focused JZ build).

Specifications and Features:

• High-flow design to suit stock-frame 1JZ-GTE VVTi turbochargers

• 300% Increase in flow versus factory OEM catted downpipe
• 4” integrated flex section to reduce exhaust vibration transfer to the turbo and manifold

• OEM-style gearbox brace mounting provision (must be connected as per factory design)

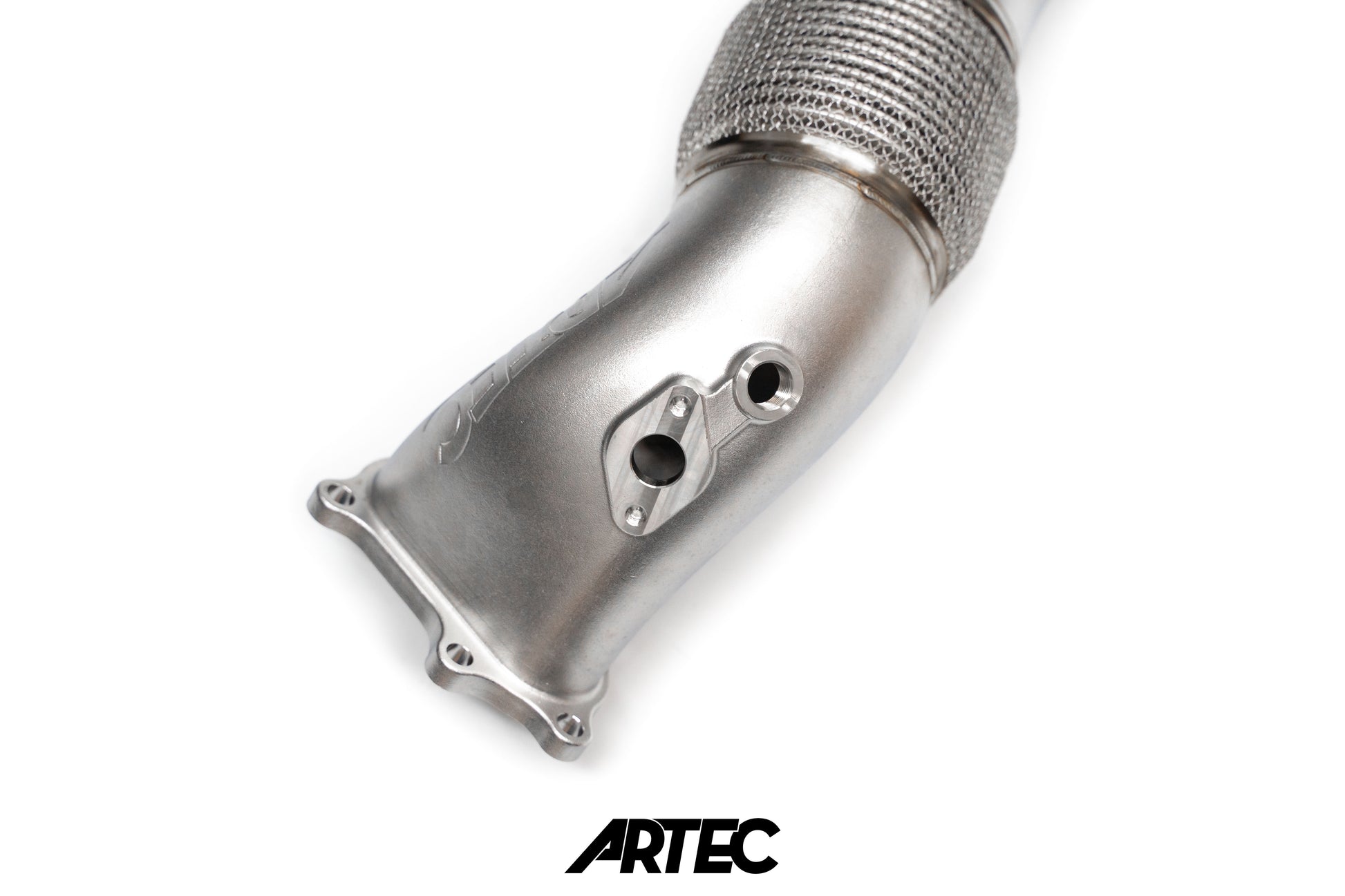

• OEM Toyota 2-bolt O2 sensor provision

• Additional wideband O2 sensor provision


Package Contents:

• 1 x Cast Stainless Steel Downpipe

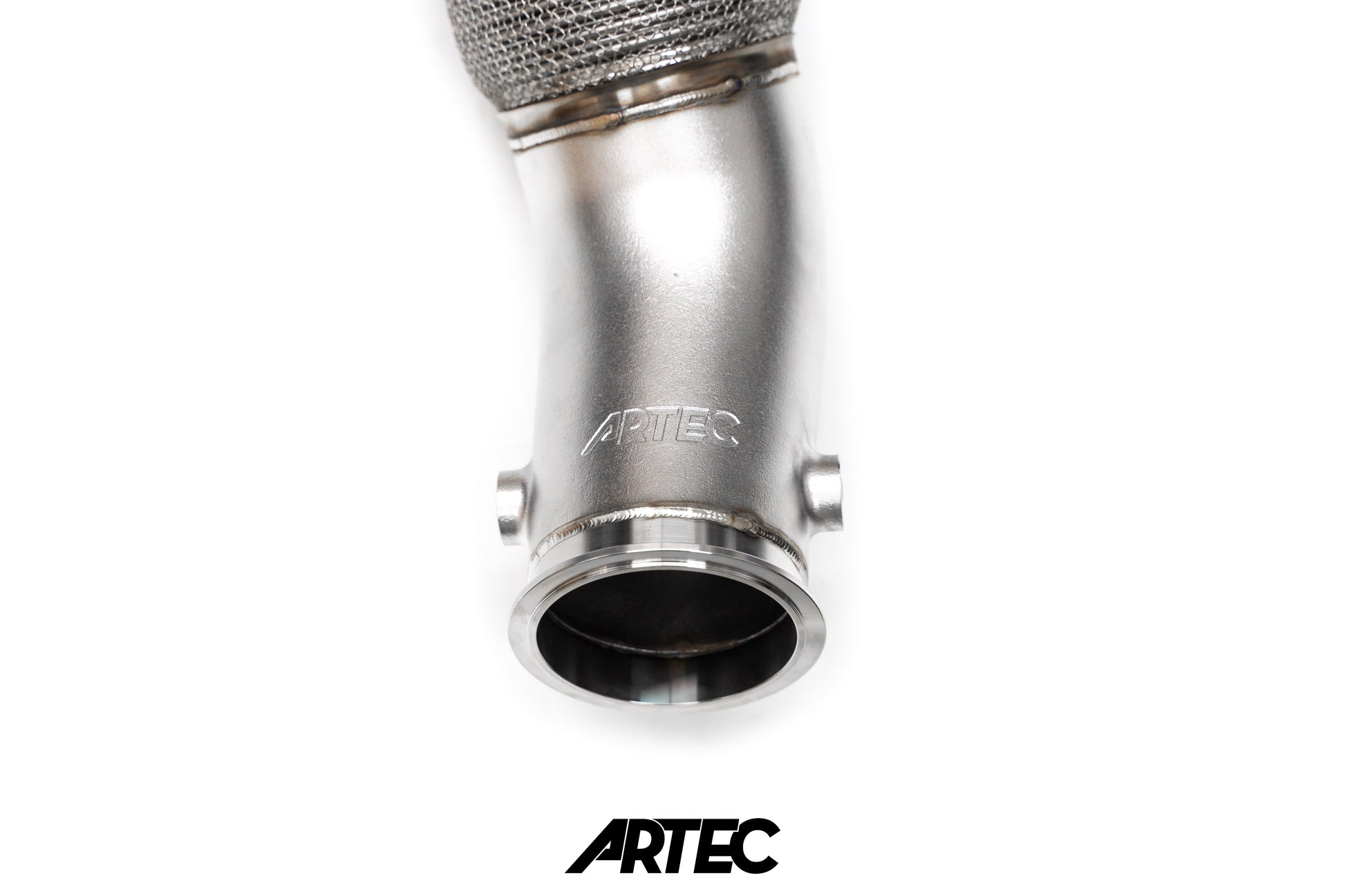

• 1 x 3.5" V-Band Flange
• 1 x 3.5" V-Band Clamp
• 1 x O2 Sensor Plug

Notes:

• For applications and regions where de-cat components are permitted

• Designed in Australia with Lifetime Warranty*
